CombiSteel 950 Wall-Mounted Canopy Can Model Complete 2400
by CombiSteel
Save 30%
Original price
€2.070,60
Current price
€1.449,42
brutto
ggf. zzgl. Versand
SKU 73.330.780
Select the right ventilation components

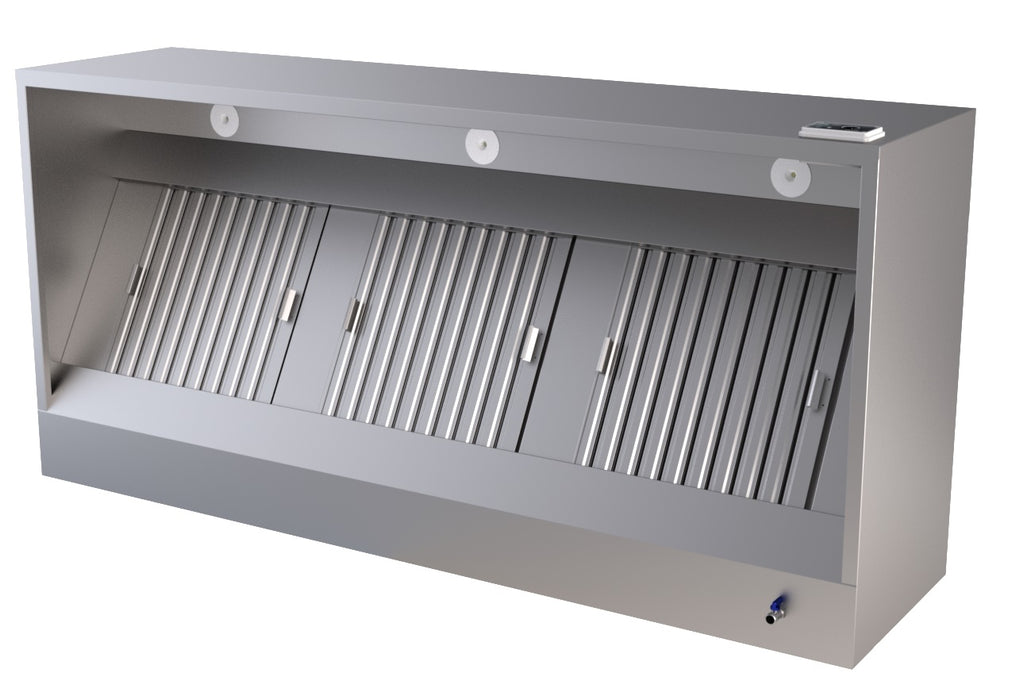

CombiSteel 950 wall-mounted extractor hood, complete duct model 2400. The dimensions are 2400 × 950 × 520 mm (W × D × H). Material according to product specifications: 430 stainless steel.
Your benefits at a glance
📐 Dimensions for your planning
W × D × H: 2400 × 950 × 520 mm.
W × D × H: 2400 × 950 × 520 mm.
🛠️ Material
430 stainless steel
430 stainless steel
⚡ Total power
0.245 kW
0.245 kW
🔌 Voltage
230 V
230 V
Plan the selection and installation
For planning or supplementing a commercial ventilation solution. Compare the dimensions and technical design with your system concept.
View technical specifications
| Manufacturer | CombiSteel |
|---|---|
| Manufacturer part number | 7333.0780 |
| Width (mm) | 2400 |
| Depth (mm) | 950 |
| Height (mm) | 520 |
| Material | 430 stainless steel |
| Color | Stainless steel |
| Gross weight (kg) | 88 |
| Voltage (Volts) | 230 |
| Frequency (Hz) | 50 |
| Total power (kW) | 0.245 |
| Connection pipe (mm) | 300 |
| Airflow (m³/h) | 2000 (max) |
| Filter dimensions W × D × H (mm) | 4x 495x495x25 |
| Lighting | Yes |
| Number of filters | 4 |
| Filtration | Yes |
| Grease trap | Yes |
| Control | Yes |
| Motor | Included |
Support from ELB Gastro
ELB Gastro will assist you in selecting the right product and answering any outstanding product questions. Please provide us with the manufacturer part number.
