CombiSteel 1100 Complete Wall-Mounted Canopy 2400
by CombiSteel
Save 30%
Original price
€2.177,70
Current price
€1.524,39
brutto
ggf. zzgl. Versand
SKU 73.331.120
Select matching ventilation components

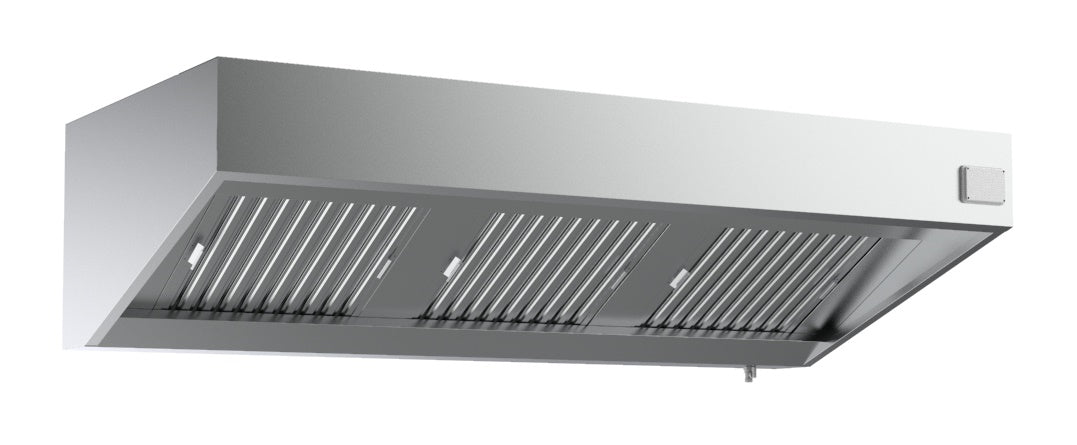

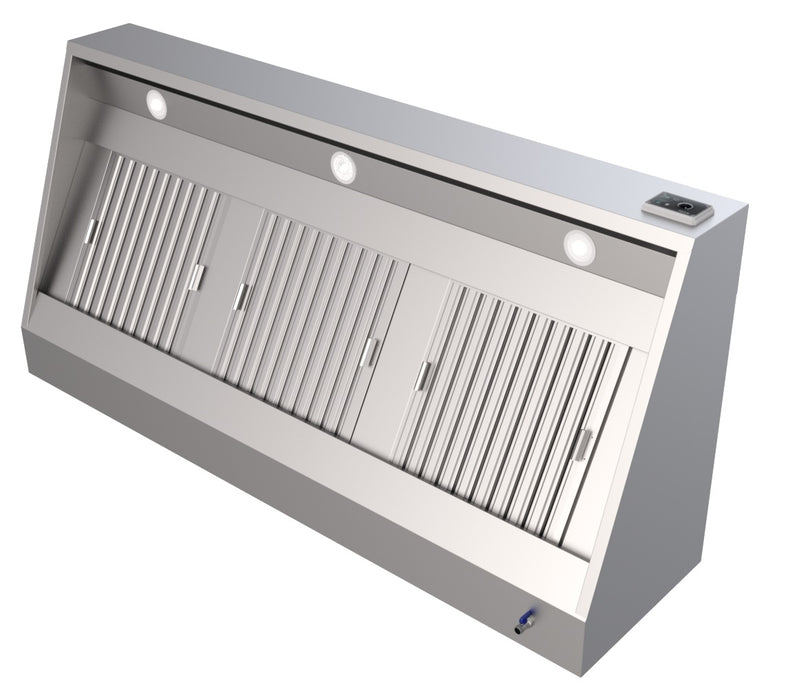

CombiSteel 1100 Wall Hood Complete 2400. The dimensions are 2400 × 1100 × 540 mm (W × D × H). Material according to product specifications: 430 stainless steel.
Your benefits at a glance
📐 Dimensions for your planning
W × D × H: 2400 × 1100 × 540 mm.
W × D × H: 2400 × 1100 × 540 mm.
🛠️ Material
430 stainless steel
430 stainless steel
⚡ Total power
0.147 kW
0.147 kW
🔌 Voltage
230 V
230 V
Plan selection and installation
For planning or supplementing a commercial ventilation solution. Compare the dimensions and technical design with your system concept.
View technical data
| Manufacturer | CombiSteel |
|---|---|
| Manufacturer part number | 7333.1120 |
| Width (mm) | 2400 |
| Depth (mm) | 1100 |
| Height (mm) | 540 |
| Material | 430 stainless steel |
| Color | Stainless steel |
| Gross weight (kg) | 105 |
| Voltage (Volts) | 230 |
| Frequency (Hz) | 50 |
| Total power (kW) | 0.147 |
| Connection pipe (mm) | 250 |
| Airflow (m³/h) | 2000 (max) |
| Filter dimensions W × D × H (mm) | 4x 495x495x25 |
| Lighting | Yes |
| Number of filters | 4 |
| Filtration | Yes |
| Grease trap | Yes |
| Control | Yes |
| Motor | Included |
Support from ELB Gastro
ELB Gastro supports you in selecting products and answering open product questions. Please provide us with the manufacturer part number.
